Catalina 42 MkII - main image

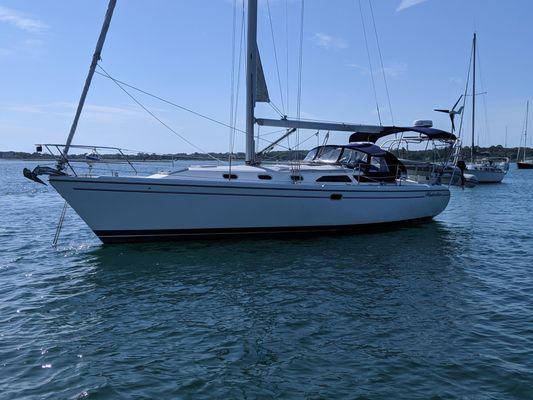

2001 Catalina 42 MkII

location icon Fall River, Massachusetts
Year 2001
Length 41'10 ft

I WATERLOU  is a fine example of the Catalina 42 Mk II. She's a well-maintained one-owner boat,  Includes In-Mast Furling Mainsail, Roller Furling  headsail.  Dickerson propane Cabin Heat, Custom arch,  Davit System with dinghy and outboard, and much, much more.  Ready for fall delivery! See full specs for details.


Year Built 2001
Category Sail
Length Overall 41'10 ft
Beam 13'10 ft
Max Draft 6 ft
Cabin Headroom 6'8 ft
Construction Fiberglass
Hull ID CTYT0745G001
Keel Winged Keel
Drive Type Direct
Engines 1
Total Engine Power 50 hp
Fuel Tanks 1
Fuel Tank Cap. 38 gal
Water Tanks 1
Water Tank Cap. 115 gal
Dry Weight 20,500 lb
Ballast 8,300 lb
Displacement 20,500 lb

Engine 1 Specifications

Make: Yanmar
Rope Cutter: true
Model: Yanmar
Drive Type: Direct
Fuel: Diesel
Engine Power: 50hp
Type: Inboard
Propeller Type: 3 Blade, Alloy, Folding
Year: 2001
Engine Hours: 782
Engine Location: Center
Sail Area

IJPE : 797.00 sq ft
I : 53.00 ft
J : 16.42 ft
P : 46.75 ft
E : 15.50 ft
Working Sail Area : 797.00 sq ft
Keel Details
Keel #1
Keel Type: Wing
Ballast: 8300 lb
Displacement: 20500 sq ft
Max Draft: 4.83 ft
  • The Catalina 42 has earned an international reputation as the leader in her class.
  • By leading in design, cruising performance, and comfort, the Catalina 42 has become the first choice of sailors worldwide.
  • The hull of the 42 MkII is high volume, and easily driven, with a fine entry, firm midship section, and smooth run aft terminating in a modified reverse transom with an uncommonly spacious and functional boarding platform.
  • A long, horizontal skeg runs aft between the  wing keel and the rudder for sure tracking. The rudder is large and balanced, ensuring control in all conditions.
  • The Catalina 42 MkII deck was designed with shorthanded sailing in mind. All the halyards, the mainsheet and the single line main reefing controls are led to the cockpit, and placed to be operated from under the dodger when necessary.
  • The wide weather decks and inboard shroud base make passage forward easy and secure.
  • The bow roller and below deck electric windlass greatly simplify anchor handling.
  • This two  cabin arrangement features varnished teak joinery and ash side paneling on the hull. Excellent light and ventilation are provided naturally from aluminum-framed opening hatches and ports. Numerous recessed halogen lights offer an inviting ambiance.
  • Salon and Forward and aft cabins are finished in varnished teak, with salon upholstery in excellent condition.
  • Fore and aft queen berths have inner spring mattresses
  • The galley, aft to port as you enter the boat, has Corian countertops and varnished teak cabinet doors and trim.
  • There is a generous amount of storage for provisions in the pantry, aft of the galley.
  • Galley Range:  3-burner with oven, gimbaled, propane
  • Refrigeration: Alder-Barbour Cold Machine, 12VDC
  • Heating: Dickerson propane heater
  • Fore and aft enclosed head areas, each has a manual marine toilet, sink with vanity, and hand-held shower.
  • Fuel Tanks: (1) 5052 aluminum in aft cockpit   (1) 5052 aluminum in aft stateroom
  • Capacity: (1) 17 gallons  (1) 46 gallons
  • Water Tanks: (3) 111 total gallons  Material: plastic
  • Pressure System: 12VDC demand type
  • Water Heater: Seaward S-1100, 11 gallons, AC & engine heated
  • Blackwater Holding tanks: (2) plastic Type III MSD holding tanks, (2) deck pumpout fittings, (2) 12VDC macerator pumps, 40 & 32 gallons each
  • The bilge is extremely clean
  • Thru-Hull Fittings: (9) Marelon  Valves: (9) Marelon ball cocks
  • Frames: plywood bulkheads fiberglassed to hull and fastened to liner
  • Stringers: liner and grid system fiberglassed to hull add longitudinal rigidity
  • Bilge Pumps: (1) Whale Gusher 10 Mk3 manual diaphragm pump, 1 1/4" hose    (1) Jabsco 1950, 12VDC submersible with float switch
  • Batteries: Starter:(1) 4D, lead-acid, 12V   House: 2  lead-acid  (780 amp hours)  1 8D battery for anchor windless
  • Master Switches: (2) aft end of galley (1) by inverter  12VDC Switches: circuit breakers
  • 12VDC Wiring:  12VDC Switchboard: starboard settee
  • 110VAC Wiring:  110VAC Switches: circuit breakers
  • Xantrex inverter/charger Freedom SW2012  2000 watt 100 amp inverter
  • Nav station mounted  VHF radio and portable handheld
  • Ritchie Powerdamp Compass, 5 1/4"
  • Garmin 5212XHD touch screen GPS/Radar/Depth
  • Raymarine AUTOPILOT
  • Raymarine autopilot remote
  • Raytheon  SPEED knot/log meter
  • Raymarine  windspeed/windpoint
  • Raytheon DEPTH depthsounder
  • Engine: Yanmar 4JH3E, 4-cylinder in-line diesel, naturally aspirated
  • Gears: Kanzaki KM3A1   2.64:1 ratio
  • HP Each: 41.2 kw @ 3,000 rpm (55.2 hp)
  • Engine Hours: 782 hours on meter
  • Exhaust System: freshwater cooled, wet exhaust, waterlift muffler, through hull exhaust
  • Blowers: in-line, 12VDC, 3" hose  Alarms: buzzer, gauges, lights
  • Fuel Lines: USCG Type A-1 Approved hose
  • diesel fuel filer/water separator
  • PYI PSS dripless propshaft packing gland
  • Steering/Controls: Edson pedestal wheel, cables, sheaves, quadrant/pedestal shift & throttle lever,
Sails and Rigging
  • Charleston Spar Keel-Stepped Mast with internal mainsail furling system and Dacron furling mainsail
  • 155% furling genoa,
  • Double spreader masthead rig
  • All lines lead aft
  • Schaefer System 3100 Headsail furling geneoa
Decks and Cockpit
  •  stainless steel anchor bracket with roller on bow
  •  anchor windlass, 12VDC power up & down, chain wheel and warping drum
  • Walk-through transom with folding stainless steel swim ladder
  •  stainless steel dingy davits,
  • 2018 Highfield RIB
  • 2018 Yamaha 6 HP outboard motor, warranty thru 5/
  • Canvas: dodger, bimini connector,  barbeque grill, Bimini  new 2020
  • New cockpit coushions
Comfort and Convenience

Comfort and Convenience

  • Passenger seats built-in to stern pulpit
  • (2) Escape hatches with screens
  • (4) Ventilation hatches with screens
  • (6) Opening port lights with screens
  • Sony AM/FM/CD stereo with (4) speakers
  •  TV mounting arm
  • Samsung microwave oven
  • Folding cockpit table
  • Magma stainless steel barbeque, propane, rail mount, with cover
  • New cockpit cushions
  •  Pedestal navigation instrument pod
  • Shore water system
  • Weems & Plath ships clock, brass
  • Weems & Plath barometer, brass
Safety Equipment

Safety Equipment

  • PFD
  • Life Vests
  • Seaward propane locker, tank with OPD valve, solenoid, high pressure gauge, regulator, held press
  • Orion Flare Kit
  • Smoke/CO detectors (2)
  • Emergency tiller
  • Lifesling® Overboard Rescue System in hard case
  • Fire Extinguishers: (4) 10-B:C
  • Nav. Lights: 12VDC international rules
  • Anchors: (1) plow-type, 150  of  5/16" chain  (1) Danforth
  • Pulpits and Lifelines: double rail 1" stainless steel bow & stern pulpits, double vinyl clad 7X19 stainless steel wire lifelines with gates, 1" stainless steel stanchion, lifelines new 2011

FWC Yanmar Diesel 4JH 3 E - 56 hp with 872 hours. Always yard maintained and very clean.

Auto prop H5-470-R self pitching feathering prop
